SKU: C8070DARPK Document Actuator Cushion Kit for Xerox® C8030 - C8070, 7845/7855, 7970, EC7836/EC7856

For Xerox® models: (WorkCentre®) 7525, 7530, 7535, 7545, 7556. 7845, 7855, 7970, EC7836, EC7856, (AltaLink®) C8030, C8035, C8045, C8055, C8070

Document Actuator Cushion Kit (pad material - cut to size, peel, and stick to replace old foam cushions) (NSX)

For Repairing 054K47690... enough material to make about 40 of the little cushions.

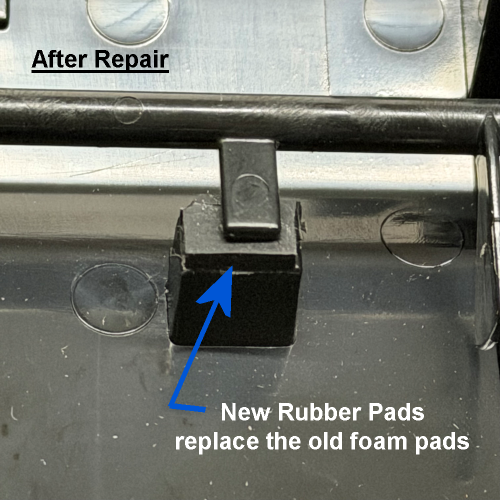

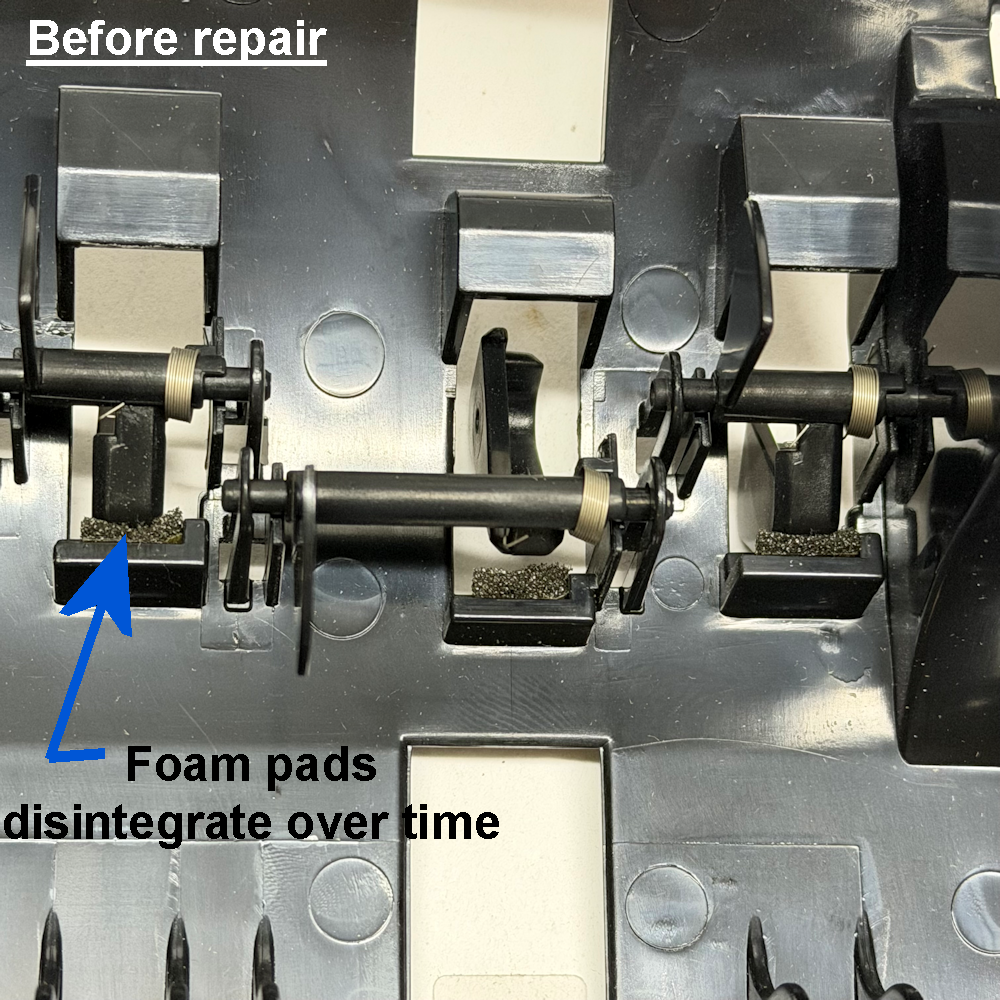

See the Before and After photos below:

The foam material falls apart and allows the actuator to go so far that it no longer flags the sensor properly, causing confusion about what size paper is passing through and triggering all sorts of intermittent document feeder jams.

The replacement pad material is rubbery with peel and stick backing.  You will use scissors or a utility knife to cut the pad to little rectangles of the right size, clean off the old foam and any adhesive left behind and stick the new rubbery cushion in its place.
